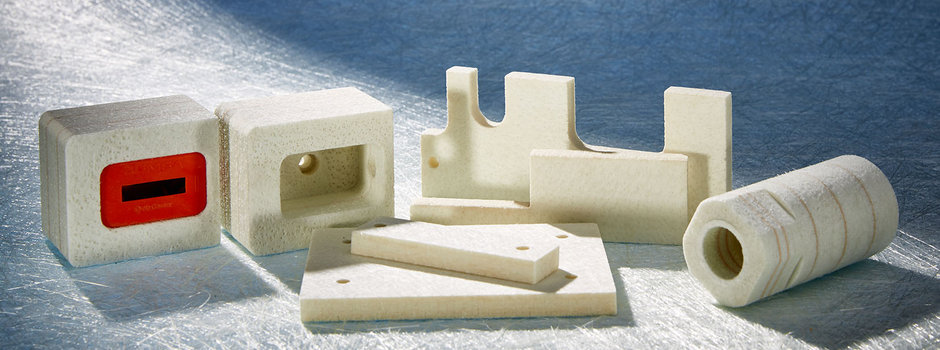

The BRANDENBURGER BRA-GLA® KA material is a non-flammable, highly insulated, heavily needle-punched glass mat to which a low percentage of organic binding agent is added in a high-tech procedure.
Special material characteristics:
- High Temperature Resistance
- Stability
- Good Insulation
- Low Specific Weight
- Toxicologically Safe
- Environmentally Friendly
- Chemically Resistant
- Very Elastic with Some Impact Resistance
- Low Fluid Absorption
Areas of application:
BRA-GLA® KA is used as an exterior insulation for moulds, dyes and machines with surface temperatures up to 350°C that are exposed to little fluid or impact stress. Heating duct insulation is another ideal area of application.
| Thermal | ||
|---|---|---|
| Temperature resistance (short-term) | 500 ℃ | 842 ℉ |
| Temperature resistance (long-term) | 450 ℃ | 842 ℉ |
| Thermal conductivity | 0.05 W/mK | 0.03 btu/ft h ℉ |
| Coefficient of the linear expansion | 7•10-6 | 7•10-6 |
| Mechanical | ||
| Compressive strength (room temperature) | 7 N/mm2 | 1015.26 psi |
| Compressive strength (200 ℃) | 4 N/mm2 | 580.15 psi |
| Other | ||
| Water absorption | 4% | 4% |
