Brandenburger S 4000® material is a laminate based on glass-fibers bound with a high-temperature polymer.
The high percentage of high-temperature resin results in an extremely low coefficient of thermal conductivity with good mechanical and thermal fatigue resistance.
Areas of application:

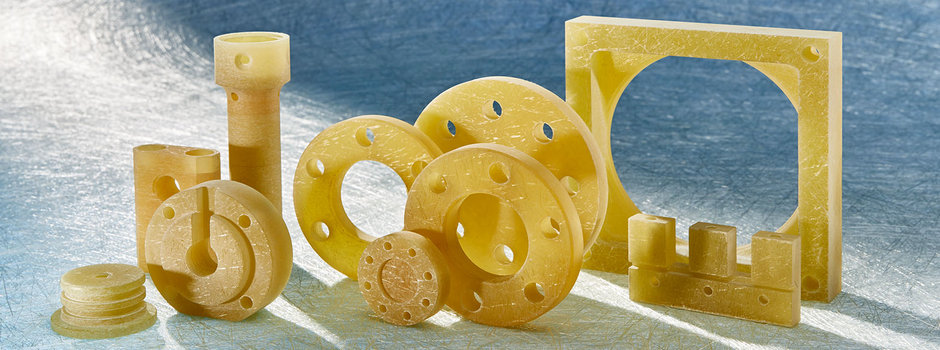

S 4000® is used for heat-protection plates or machine components of heated presses and tools in the plastics, rubber and wood-processing industries.
Compared to inorganic insulation materials that are subject to brittle fracture, S 4000® is the better alternative. Compared to other glass-fiber reinforced insulation materials, a significantly lower thickness is required to achieve the desired degree of insulation.
Specifications: the listed data are guidelines only and not contractually guaranteed!
Special material characteristics:
- High Long-Term Temperature Resistance
- Exceptionally Good Insulation
- High Compressive Strength
- Chemically Resistant to Acids and Organic Solvents
| Thermal | ||
|---|---|---|
| Temperature resistance (short-term) | 250 ℃ | 482 ℉ |
| Temperature resistance (long-term) | 210 ℃ | 410 ℉ |
| Thermal conductivity | 0.12 W/mK | 0.07 btu/ft h ℉ |
| Coefficient of the linear expansion | 28•10-6 | 28•10-6 |
| Mechanical | ||
| Compressive strength (room temperature) | 300 N/mm2 | 43511.3 psi |
| Flexual strength | 200 N/mm2 | 29007.5 psi |
| Compressive strength (200 ℃) | 100 N/mm2 | 14503.8 psi |
